RF-BM-ND08A is an RF module based on Nordic BLE SoC nRF52811QFAA with ARM? Cortex?-M4 32-bit processor. It integrates a 32.768 kHz and a 32 MHz crystal, an LC filter, an antenna matching and a meander line inverted-F PCB antenna. It features low power consumption, small size, robust connection distance, and rigid reliability.
Nordic nRF52811 Long distance and low pwer consumption chip BLE 5.1 mesh module

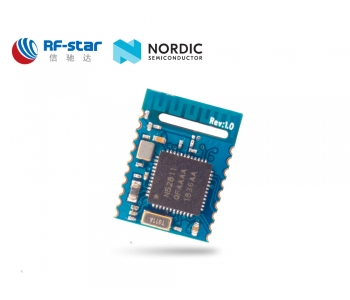

RF-BM-ND08A is an RF module based on Nordic BLE SoC nRF52811QFAA with ARM? Cortex?-M4 32-bit processor. It integrates a 32.768 kHz and a 32 MHz crystal, an LC filter, an antenna matching and a meander line inverted-F PCB antenna. It features low power consumption, small size, robust connection distance, and rigid reliability. It supports BLE stack v5.1 and can be preprogrammed with a serial interface communication protocol for simple programming. 1.27-mm pitch stamp stick package for easy assembling and cost-effective PCB design. RF-BM-ND08A is pin-to-pin compatible with RF-BM-ND08.
Parameters of RF-BM-ND08A
Chipset | nRF52811QFAA |
Supply Power Voltage | 1.7 V ~ 3.6 V, recommended to 3.3 V |
Frequency | 2402 MHz ~ 2480 MHz |
Transmit Power | -20.0 dBm ~ +4.0 dBm (Typical: 0 dBm) |
Receiving Sensitivity | -97 dBm |
GPIO | 16 |
Crystal | 32 MHz, 32.768 kHz |
RAM | 24 KB |
Flash | 192 KB |
Package | SMT Packaging |
Frequency Error | ±20 kHz |
Dimension | 15.2 mm x 11.2 mm x (1.7 ± 0.1) mm |
Type of Antenna | PCB antenna, half-hole interface |
Operating Temperature | -40 ℃～ +85 ℃ |
Storage Temperature | -40 ℃～ +125 ℃ |

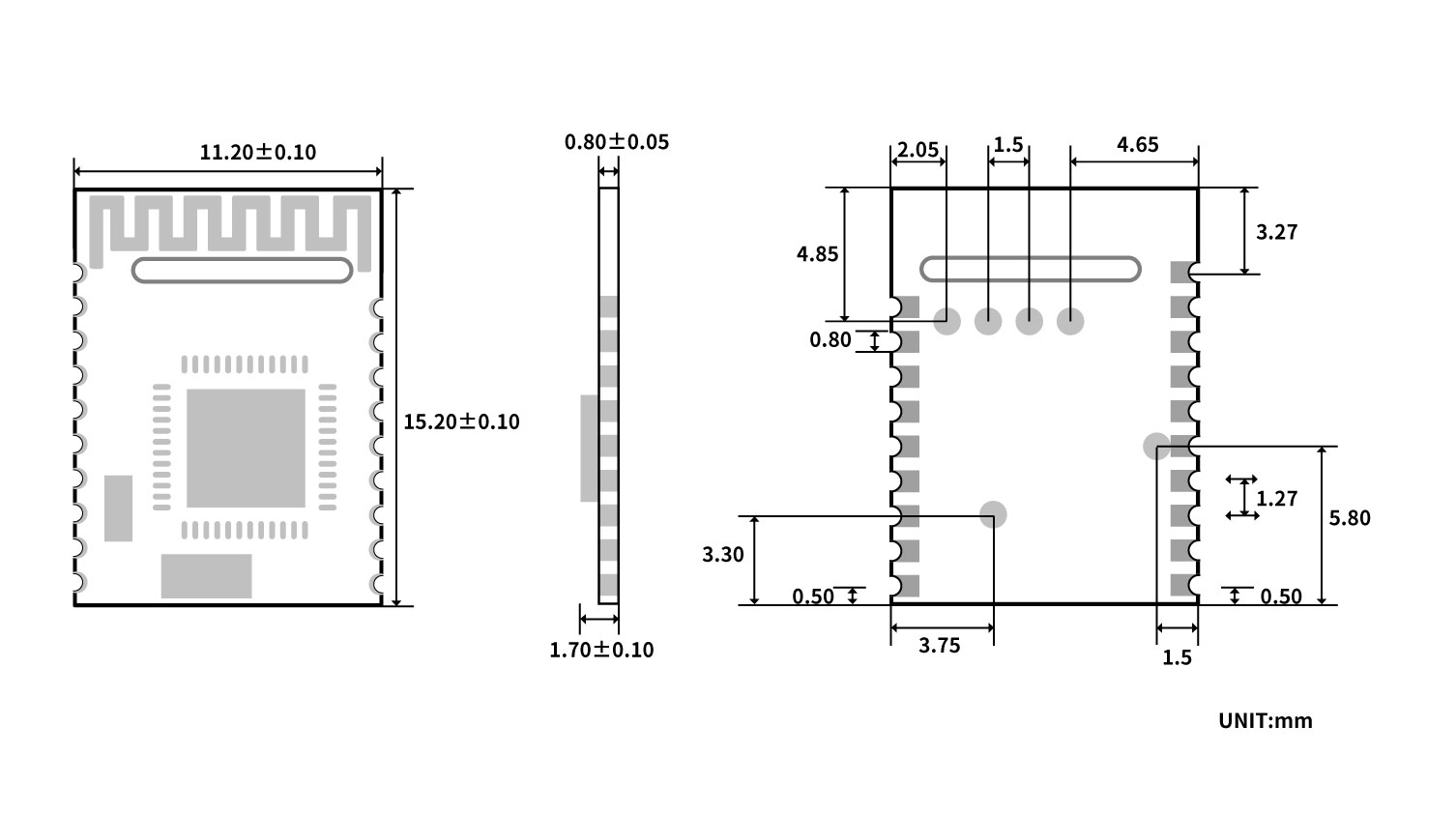

Recommended Footprint

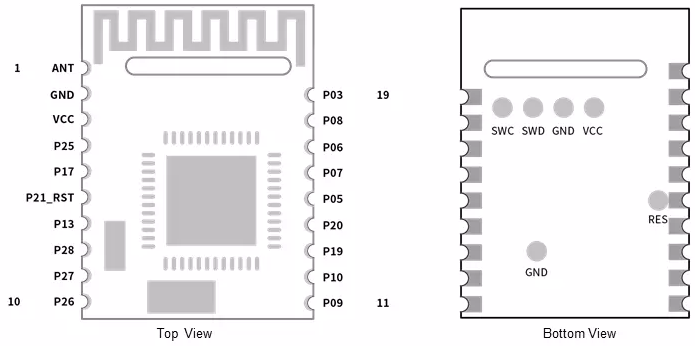

Pin Attributes
Pin Functions of RF-BM-ND08A
Pin | Name | Chip Pin | Pin Type | Description |
1 | ANT | - | - | Antenna interface |
2 | GND | GND | GND | Ground |
3 | VCC | VCC | VCC | Power supply 1.7 V ~ 3.6 V, Recommend 3.3 V |
4 | P25 | P0_25 | I/O | |
5 | P17 | P0_17 | I/O | |
6 | P21/RST | P0_21 / RESET | I/O | Reset, active low. |
7 | P13 | P0_13 | I/O | |
8 | P28 | P0_28 / AIN4 | I/O | |
9 | P27 | P0_27 | I/O | |
10 | P26 | P0_26 | I/O | |
11 | P09 | P0_09 | I/O | |
12 | P10 | P0_10 | I/O | |
13 | P19 | P0_19 | I/O | |
14 | P20 | P0_20 | I/O | |
15 | P05 | P0_05 / AIN3 | I/O | |
16 | P07 | P0_07 | I/O | |
17 | P06 | P0_06 | I/O | |
18 | P08 | P0_08 | I/O | |
19 | P03 | P0_03 / AIN1 | I/O |
