Programmable Bluetooth LE module RF-BM-2340A2 is RF-star's new CC2340R5 RF transmitter and receiver for monitors and sensors.

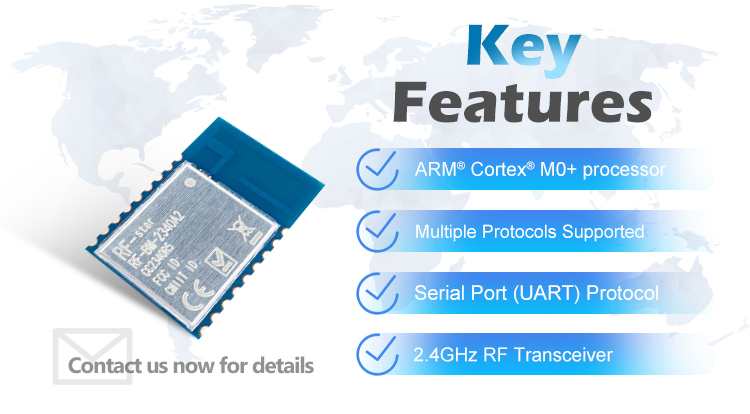

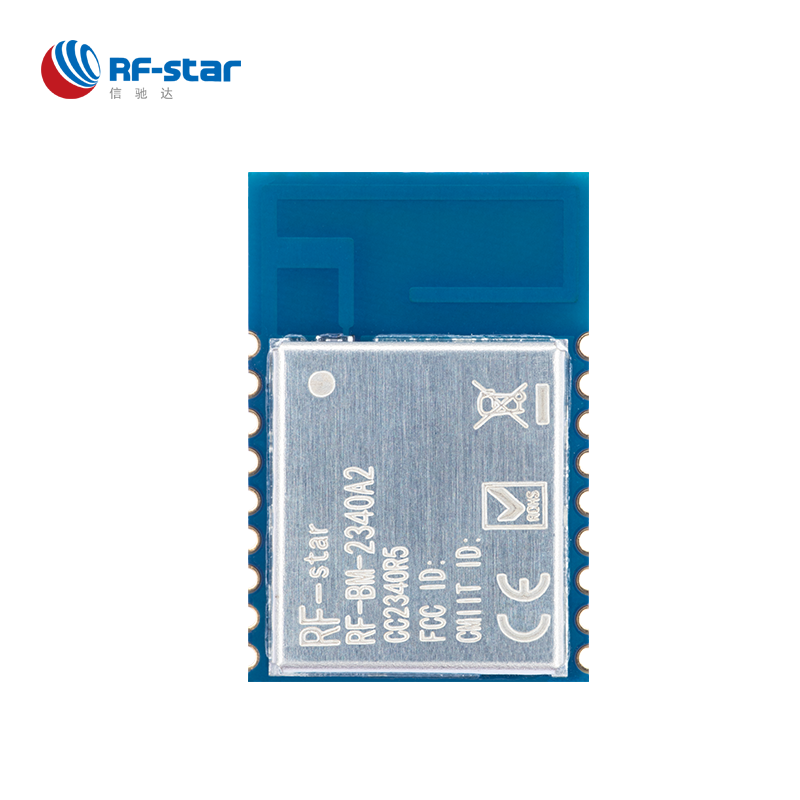

RF-BM-2340A2 is a lower-power multiprotocol module based on TI CC2340R5 SoC - one of the CC2340 series. The 2.4 GHz wireless module supports Thread, ZigBee?, Bluetooth? 5.3 Low Energy, IEEE 802.15.4, and proprietary 2.4 GHz. It integrates a 48 MHz crystal, 512 KB of in-system Programmable Flash, 12 KB ROM for bootloader, and 36 KB of ultra-low leakage SRAM. The ARM? Cortex?-M0+ core application processor can operate at an extremely low current at flexible power modes. The Bluetooth module enables long-range and low-power applications using 8 dBm high-power with best-in-class transmit current consumption at 12 mA. It features a small size, robust connection distance, and rigid reliability. The 1.27-mm half-hole pitch stamp stick makes the module more convenient for application and development. RF-BM-2340A2 has a high-performance PCB antenna. Our Bluetooth 5.0 UART serial port protocol can also enable you to start your development with a quick path.
For more CC2340 series modules, please click here.
Parameters of RF-BM-2340A2

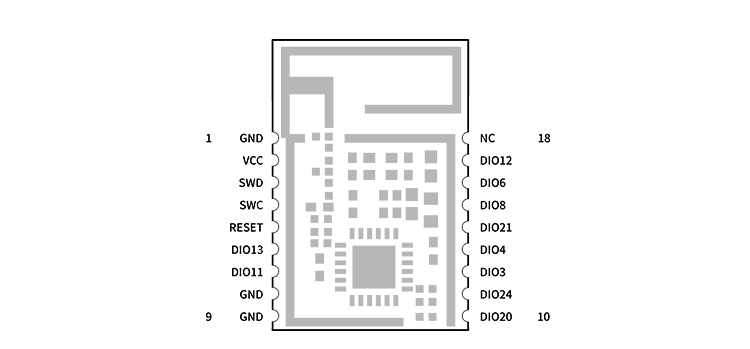

Chipset | CC2340R5 |
Supply Power Voltage | DCDC mode: 2.2 V ~ 3.8 V, 3.3 V is recommended GLDO mode: 1.71 V ~ 3.8 V, 3.3 V is recommended |
Frequency | 2360 MHz ～ 2510 MHz |
Maximum Transmit Power | +8.0 dBm |
Receiving Sensitivity | -102 dBm @ Bluetooth 125 kbps (LE Coded PHY) -99 dBm @ Bluetooth 500 kbps (LE Coded PHY) -96.5 dBm @ Bluetooth 1 Mbps -92 dBm @ Bluetooth 2 Mbps |
GPIO | 12 |
Flash | 512 KB |
ROM | 12 KB for bootloader and drivers |
SRAM | 36 KB |
Power Consumption | RX current: 5.3 mA TX current: 5.1 mA @ 0 dBm ﹤11.0 mA @ 8 dBm MCU (CoreMark): 2.6 mA @ active mode Standby: ﹤710 nA @RTC, 36 KB RAM Shutdown: 150 nA @ wake-up on pin |
Support Protocol | Bluetooth 5.3 Low Energy, ZigBee, Proprietary, SimpleLink TI 15.4-stack |
Crystal | 48 MHz, 32.768 kHz |
Package | SMT packaging (1.27-mm half-hole pitch stamp stick) |

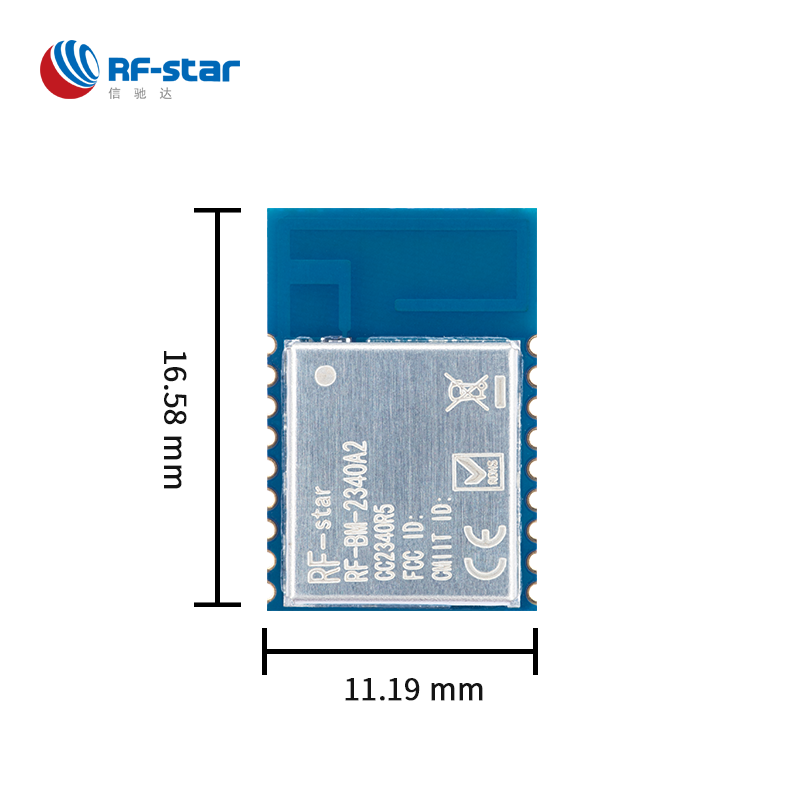

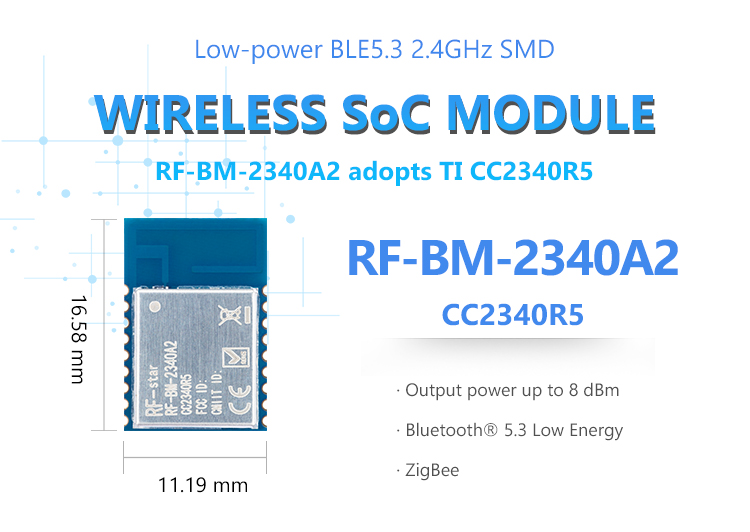

Dimension | 16.58 mm × 11.19 mm × 2.10 mm |
Type of Antenna | PCB antenna |
Operating Temperature | -40 ℃ ～ +85 ℃ |
Storage Temperature | -40 ℃ ～ +125 ℃ |
