Product Description

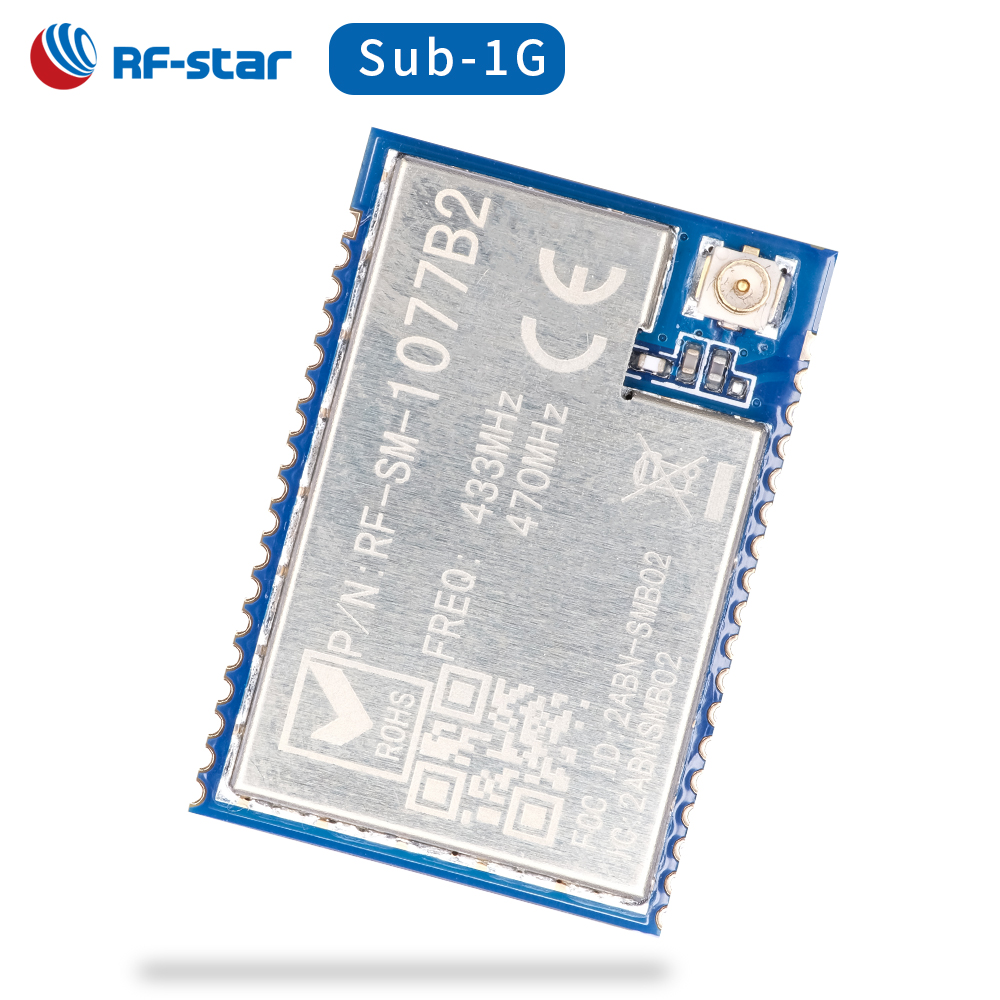

RF-SM-1077B2 Ultra-Low-Power 433 MHz & 470 MHz Wireless Module for Home Automation
RF-SM-1077B2 Sub-1 GHz module is based on TI CC1310, which combines a flexible, very low-power RF transceiver with a powerful 48 MHz ARM? Cortex?-M3 microcontroller supporting multiple physical layers and RF standards and a dedicated radio controller Cortex?-M0 handling RF protocol commands that are stored in ROM or RAM. RF-SM-1077B2 integrates a 24.0 MHz crystal, a balun, a band pass filter, an antenna matching and an IPEX antenna matching which make the module low cost, low power consumption and long wireless communication in Sub-1 GHz.
Parameters of RF-SM-1077B2
Chipset | CC1310F128RGZ |
Supply Power Voltage | 1.8 V ~ 3.8 V, recommended to 3.3 V |
Frequency | 433 MHz, 470 MHz |
Maximum Transmit Power | +15.0 dBm |
Receiving Sensitivity | -124.0 dBm (@long range mode) -110.0 dBm (@50 kpbs) |
GPIO | 30 |
Crystal | 24 MHz, 32.768 kHz |
RAM | 20 KB |
Flash | 128 KB |
Package | SMT Packaging |
Frequency Error | ±20 kHz |
Dimension | 26.0 mm x 18.0 mm x (2.3 ± 0.1) mm |
Type of Antenna | IPEX interface |
Operating Temperature | -40 ℃～ +85 ℃ |
Storage Temperature | -40 ℃～ +125 ℃ |
Recommended Footprint
Pin Attributes

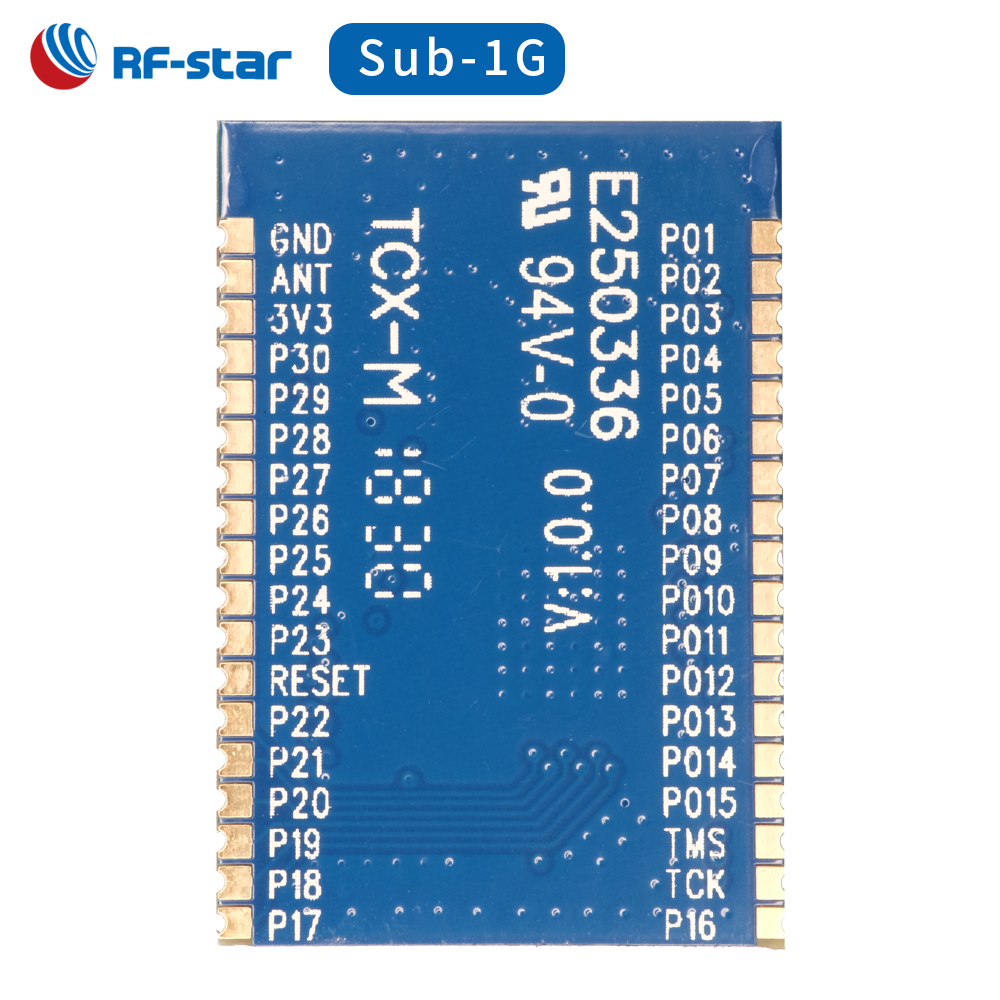

Pin Functions of RF-SM-1077B2
Pin | Name | Chip Pin | Pin Type | Description |
1 | P01 | DIO_1 | Digital I/O | GPIO, Sensor Controller |
2 | P02 | DIO_2 | Digital I/O | GPIO, Sensor Controller |
3 | P03 | DIO_3 | Digital I/O | GPIO, Sensor Controller |
4 | P04 | DIO_4 | Digital I/O | GPIO, Sensor Controller |
5 | P05 | DIO_5 | Digital I/O | GPIO, Sensor Controller |
6 | P06 | DIO_6 | Digital I/O | GPIO, Sensor Controller |
7 | P07 | DIO_7 | Digital I/O | GPIO, Sensor Controller |
8 | P08 | DIO_8 | Digital I/O | GPIO |
9 | P09 | DIO_9 | Digital I/O | GPIO |
10 | P10 | DIO_10 | Digital I/O | GPIO |
11 | P11 | DIO_11 | Digital I/O | GPIO |
12 | P12 | DIO_12 | Digital I/O | GPIO |
13 | P13 | DIO_13 | Digital I/O | GPIO |
14 | P14 | DIO_14 | Digital I/O | GPIO |
15 | P15 | DIO_15 | Digital I/O | GPIO |
16 | TMS | JTAG_TMSC | - | JTAG TMS |
17 | TCK | JTAG_TCKC | - | JTAG TCK |
18 | P16 | DIO_16 | Digital I/O | JTAG TDO |
19 | P17 | DIO_17 | Digital I/O | JTAG TDI |
20 | P18 | DIO_18 | Digital I/O | GPIO |
21 | P19 | DIO_19 | Digital I/O | GPIO |
22 | P20 | DIO_20 | Digital I/O | GPIO |
23 | P21 | DIO_21 | Digital I/O | GPIO |
24 | P22 | DIO_22 | Digital I/O | GPIO |
25 | RESET | RESET_N | - | Reset, active low. No internal pullup. |
26 | P23/ADC0 | DIO_23 | Digital or analog I/O | GPIO, Sensor Controller, analog |
27 | P24/ADC1 | DIO_24 | Digital or analog I/O | GPIO, Sensor Controller, analog |
28 | P25 | DIO_25 | Digital or analog I/O | GPIO, Sensor Controller, analog |
29 | P26 | DIO_26 | Digital or analog I/O | GPIO, Sensor Controller, analog |
30 | P27 | DIO_27 | Digital or analog I/O | GPIO, Sensor Controller, analog |
31 | P28 | DIO_28 | Digital or analog I/O | GPIO, Sensor Controller, analog |
32 | P29 | DIO_29 | Digital or analog I/O | GPIO, Sensor Controller, analog |
33 | P30 | DIO_30 | Digital or analog I/O | GPIO, Sensor Controller, analog |
34 | VCC | VCC | - | 1.8 V ~ 3.8 V, recommended to 3.3 V |
35 | ANT | - | - | External antenna pin |
36 | GND | GND | - | Ground |
