Product Description
CC1352P RF-TI1352P1 High-Performance Sub-1G + 2.4 G Dual-band Module With Integrated Power Amplifier

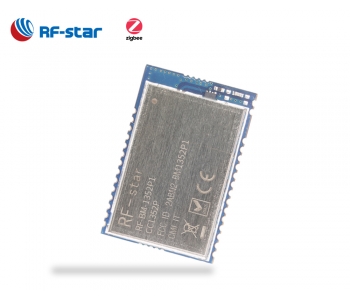

RF-TI1352P1 is an RF module based on TI SoC CC1352P with an integrated power amplifier. It integrates a 48 MHz and a 32.768 kHz crystal, a 256 KB ROM, a 352 KB Flash, and the half-hole antenna pin to guarantee the external antenna connection. Its ARM? Cortex?-M4F core application processor is optimized for long-range and low-power. It features a small size, robust connection distance, and rigid reliability. The multi-band module supports multiprotocol for both Sub-1 GHz and 2.4 GHz through a DMM driver for Thread, Zigbee?, Bluetooth? 5.1 Low Energy, IEEE 802.15.4g, IPv6-enabled smart objects (6LoWPAN), MIOTY?, proprietary systems, including the TI 15.4-Stack (Sub-1 GHz and 2.4 GHz). 1.27-mm pitch stamp stick package for easy assembling and cost-effective PCB design.
Parameters of RF-TI1352P1
Chipset | CC1352P |
Supply Power Voltage | 1.8 V ~ 3.8 V, 3.3 V is recommended |
Frequency | 800 MHz ~ 928 MHz, 2402 MHz ~ 2480 MHz |
Maximum Transmit Power | +20.0 dBm |
Receiving Sensitivity | -121 dBm @ Sub GHz (Long-range Mode) -110 dBm @ Sub GHz (50 kbps) -105 dBm @ Bluetooth 5.0 (LE Coded PHY) |
GPIO | 23 |
Power Consumption | RX current: 5.8 mA @3.6 V, 868 MHz 6.9 mA @3.0 V, 2.4 GHz TX current @ 20 dBm: 63.0 mA, 3.3 V, 915 MHz 85.0 mA, 3.0 V, 2.4 GHz MCU 48 MHz (CoreMark): 2.9 mA (60 μA/MHz Sensor Controller: 30.1 μA @ Low Power-Mode, 2 MHz, running an infinite loop Sensor Controller: 808 μA @ Active-Mode, 24 MHz, running an infinite loop Standby mode: 0.85 μA Sleep Mode: 150 nA |
Support Protocol | Thread, ZigBee, BT 5.0 and TI 15.4-Stack (Sub 1GHz) |
Crystal | 48 MHz, 32.768 kHz |
Package | SMT packaging |
Communication Interface | UART, SPI, I2C, I2S, ADC |
Dimension | 25.0 mm × 16.4 mm |
Type of Antenna | Half-hole interface |
Operating Temperature | -40 ℃～ +85 ℃ |
Storage Temperature | -40 ℃～ +125 ℃ |
RF-TI1352P1 vs RF-TI1352P2

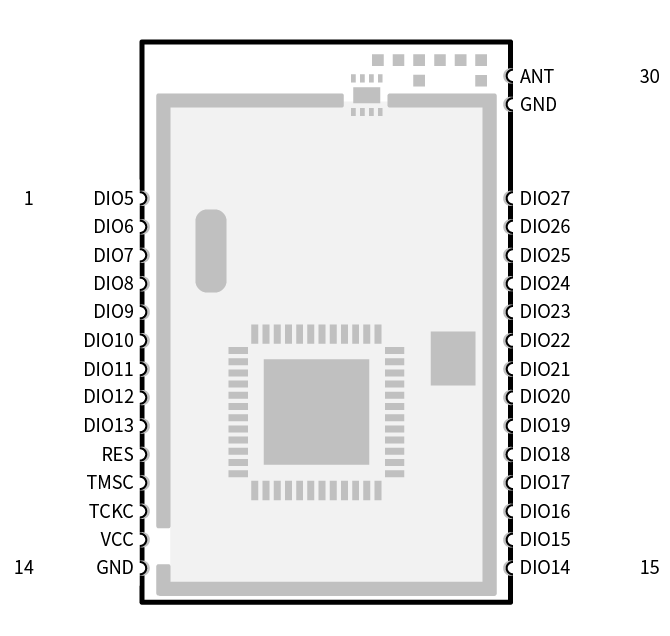

Pin Attributes
Pin Functions of RF-TI1352P1
Pin | Name | Function | Description |
1 | DIO5 | GPIO | GPIO, high-drive capability |
2 | DIO6 | GPIO | GPIO, high-drive capability |
3 | DIO7 | GPIO | GPIO, high-drive capability |
4 | DIO8 | GPIO | GPIO |
5 | DIO9 | GPIO | GPIO |
6 | DIO10 | GPIO | GPIO |
7 | DIO11 | GPIO | GPIO |
8 | DIO12 | GPIO | GPIO |
9 | DIO13 | GPIO | GPIO |
10 | RESET | RST | Reset, active low. No internal pullup resistor. |
11 | TMSC | JTAG_TMSC | JTAG_TMSC, high-drive capability |
12 | TCKC | JTAG_TCKC | JTAG_TCKC |
13 | VCC | VCC | Power Supply: 1.8 V ~ 3.8 V, recommend to 3.3 V |
14 | GND | GND | Ground |
15 | DIO14 | GPIO | GPIO |
16 | DIO15 | GPIO | GPIO |
17 | DIO16 | GPIO | GPIO, JTAG_TDO, high-drive capability |
18 | DIO17 | GPIO | GPIO, JTAG_TDI, high-drive capability |
19 | DIO18 | GPIO | GPIO |
20 | DIO19 | GPIO | GPIO |
21 | DIO20 | GPIO | GPIO |
22 | DIO21 | GPIO | GPIO |
23 | DIO22 | GPIO | GPIO |
24 | DIO23 | GPIO or Analog | GPIO, Sensor Controller, analog |
25 | DIO24 | GPIO or Analog | GPIO, Sensor Controller, analog |
26 | DIO25 | GPIO or Analog | GPIO, Sensor Controller, analog |
27 | DIO26 | GPIO or Analog | GPIO, Sensor Controller, analog |
28 | DIO27 | GPIO or Analog | GPIO, Sensor Controller, analog |
29 | GND | GND | Ground |
30 | ANT | ANT | Antenna pin |
