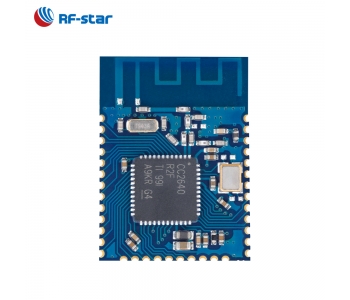

RF-BM-4077B1 is a PCB module based on TI CC2640 wireless MCU supporting Bluetooth Low Energy (BLE) stack v4.2 or BT5.0. To minimize users’ design effort, RF-BM-4077B1 module has integrated a 24 MHz crystal, a 32.768 kHz crystal, an LC balun, and an inverted-F PCB antenna.
RF-BM-4077B1 is a PCB module based on TI CC2640 wireless MCU supporting Bluetooth Low Energy (BLE) stack v4.2 or BT5.0. To minimize users’ design effort, RF-BM-4077B1 module has integrated a 24 MHz crystal, a 32.768 kHz crystal, an LC balun, and an inverted-F PCB antenna. The CC2640 device contains a 32-bit ARM CortexTM-M3 main processor at 48 MHz, a rich peripheral feature set including a unique ultra-low power sensor controller. Its 2.4GHz radio processes very low active current and outstanding RF performance. It is pre-programmed with an application communication protocol over its serial interface and an AT command set, which allows users to quickly connect their application to build a reliable BLE connection for their products. This module fits into a wide range of BLE applications where robust connection, long battery lifetime, small form factor, and ease of use are important.
Parameters of RF-BM-4077B1
Chipset | CC2640R2FRGZ |
Supply Power Voltage | 1.8 V ~ 3.8 V, recommended to 3.3 V |
Frequency | 2402 MHz ~ 2480 MHz |
Transmit Power | -21.0 dBm ~ +5.0 dBm (typical: 0 dBm) |
Receiving Sensitivity | -97 dBm |
GPIO | 31 |
Crystal | 24 MHz, 32.768 kHz |
RAM | 20 KB |
Flash | 128 KB |
Package | SMT Packaging |
Interface | UART, I2S, I2C, SPI, ADC |
Frequency Error | ±20 kHz |
Dimension | 23.5 mm x 17.0 mm x (1.7 ± 0.1) mm |
Type of Antenna | PCB antenna |
Operating Temperature | -40 ℃～ +85 ℃ |
Storage Temperature | -40 ℃～ +125 ℃ |
Recommended Footprint
Pin Attributes
Pin Diagram of RF-BM-4077B1
Name | Chip Pin | Pin Type | Description | |
1 | P00 | DIO_0 | I/O | GPIO, Sensor Controller |
2 | P01 | DIO_1 | I/O | GPIO, Sensor Controller |
3 | P02 | DIO_2 | I/O | GPIO, Sensor Controller |
4 | P03 | DIO_3 | I/O | GPIO, Sensor Controller |
5 | P04 | DIO_4 | I/O | GPIO, Sensor Controller |
6 | P05 | DIO_5 | I/O | GPIO, Sensor Controller, high-drive capability |
7 | P06 | DIO_6 | I/O | GPIO, Sensor Controller, high-drive capability |
8 | P07 | DIO_7 | I/O | GPIO, Sensor Controller, high-drive capability |
9 | P08 | DIO_8 | I/O | GPIO |
10 | P09 | DIO_9 | I/O | GPIO |
11 | P10 | DIO_10 | I/O | GPIO |
12 | P11 | DIO_11 | I/O | GPIO |
13 | P12 | DIO_12 | I/O | GPIO |
14 | P13 | DIO_13 | I/O | GPIO |
15 | P14 | DIO_14 | I/O | GPIO |
16 | P15 | DIO_15 | I/O | GPIO |
17 | JTAG_TMSC | JTAG_TMSC | － | JTAG TMSC, high-drive capability |
18 | JTAG_TCKC | JTAG_TCKC | － | JTAG TCKC |
19 | P16 | DIO_16 | I/O | GPIO, JTAG_TDO, high-drive capability |
20 | P17 | DIO_17 | I/O | GPIO, JTAG_TDI, high-drive capability |
21 | P18 | DIO_18 | I/O | GPIO |
22 | P19 | DIO_19 | I/O | GPIO |
23 | P20 | DIO_20 | I/O | GPIO |
24 | P21 | DIO_21 | I/O | GPIO |
25 | P22 | DIO_22 | I/O | GPIO |
26 | P23 | DIO_23 | I/O | GPIO, Sensor Controller, Analog |
27 | P24 | DIO_24 | I/O | GPIO, Sensor Controller, Analog |
28 | P25 | DIO_25 | I/O | GPIO, Sensor Controller, Analog |
29 | P26 | DIO_26 | I/O | GPIO, Sensor Controller, Analog |
30 | P27 | DIO_27 | I/O | GPIO, Sensor Controller, Analog |
31 | P28 | DIO_28 | I/O | GPIO, Sensor Controller, Analog |
32 | P29 | DIO_29 | I/O | GPIO, Sensor Controller, Analog |
33 | P30 | DIO_30 | I/O | GPIO, Sensor Controller, Analog |
34 | VCC | VCC | VCC | Power supply 1.8 V ~ 3.8 V, Recommend 3.3 V |
35 | GND | GND | GND | Ground |
36 | RESET | RESET_N | RESET | Reset, active low, no internal pullup. |
