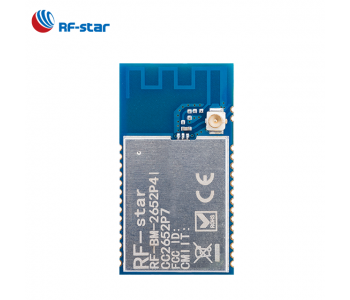

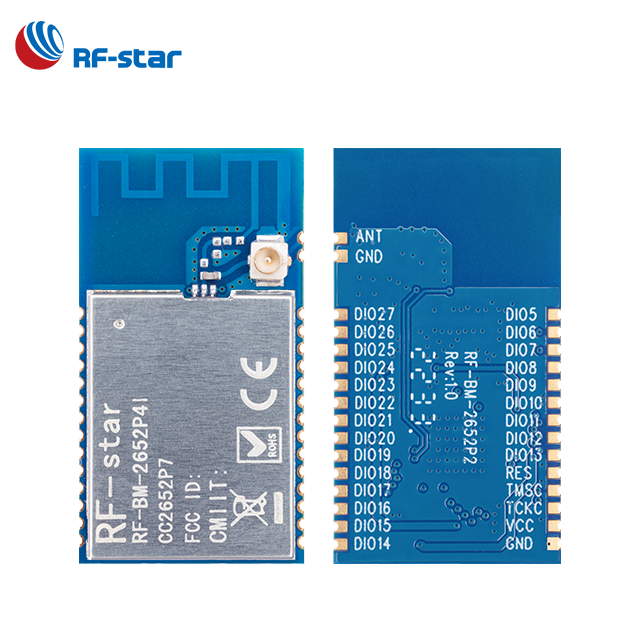

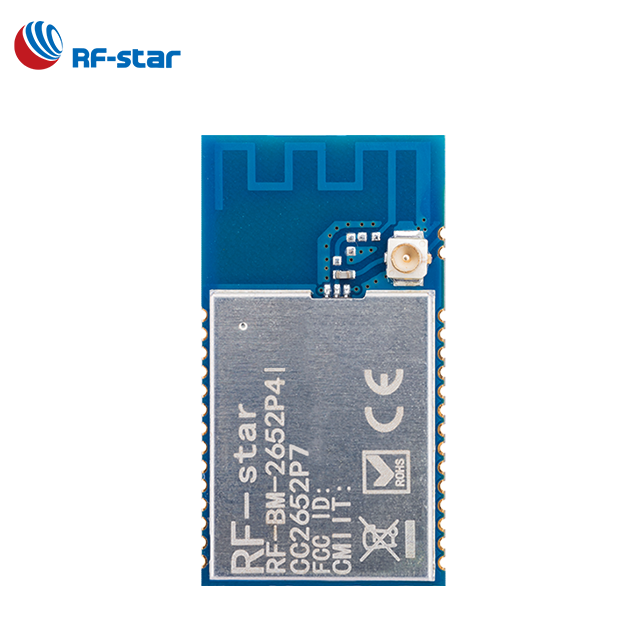

RF-BM-2652P4I is RF star CC2652P7 20 dBm ZigBee 3.0 Bluetooth Thread 2.4GHz CC2652P RF transmitter and receiver module with integrated power amplifier and IPEX connector for Matter gateway, grids.
RF-BM-2652P4(I) is an RF module based on TI lower-power CC2652P7 SoC, which is a multiprotocol 2.4 GHz wireless module supporting Matter, Thread, Zigbee?, Bluetooth? 5.3 Low Energy, IEEE 802.15.4, IPv6-enabled smart objects (6LoWPAN), proprietary systems, including the TI 15.4-Stack (2.4 GHz), and concurrent multiprotocol through a Dynamic Multiprotocol Manager (DMM) driver. It integrates a 48 MHz crystal and a 32.768 kHz crystal, 704 KB of in-system Programmable Flash, 256 KB ROM, 8 KB of Cache SRAM, and 144 KB of ultra-low leakage SRAM. Its ARM? Cortex?-M4F core application processor can operate at an extremely low current at flexible power modes. And the module enables long-range and low-power applications using an integrated +20 dBm high-power amplifier with best-in-class transmit current consumption at 101 mA. It features a small size, robust connection distance, and rigid reliability. Optional antenna output modes (PCB, IPEX connector, and half-hole interface) make the module more convenient for application and development.
Table 1. Parameters of RF-BM-2652P4(I)
Chipset | CC2652P7 |
Supply Power Voltage | 1.8 V ~ 3.8 V, 3.3 V is recommended |
Frequency | 2402 MHz ～ 2480 MHz |
Maximum Transmit Power | +20.0 dBm |
Receiving Sensitivity | -99 dBm @ 802.15.4 (2.4 GHz) -104 dBm @ Bluetooth 125 kbps (LE Coded PHY) |
GPIO | 23 |
Flash | 704 KB |
ROM | 256 KB |
SRAM | 152 KB |
Power Consumption | RX current: 6.4 mA TX current: 7.3 mA @ 0 dBm 9.7 mA @ 5 dBm 21 mA @ 10 dBm 101 mA @ 20 dBm MCU 48 MHz (CoreMark): 3.1 mA (65 μA/MHz) Sensor Controller: 29.2 μA @ Low Power-Mode, 2 MHz 799 μA @ Active-Mode, 24 MHz Standby: 0.9 μA Shutdown: 0.1 μA |
Support Protocol | Bluetooth 5.3 Low Energy, Matter, ZigBee, Thread, IEEE 802.15.4, 6LoWPAN, SimpleLinkTM TI 15.4-stack, Proprietary systems |
Crystal | 48 MHz, 32.768 kHz |
Package | SMT packaging (1.27-mm half-hole pitch stamp stick) |

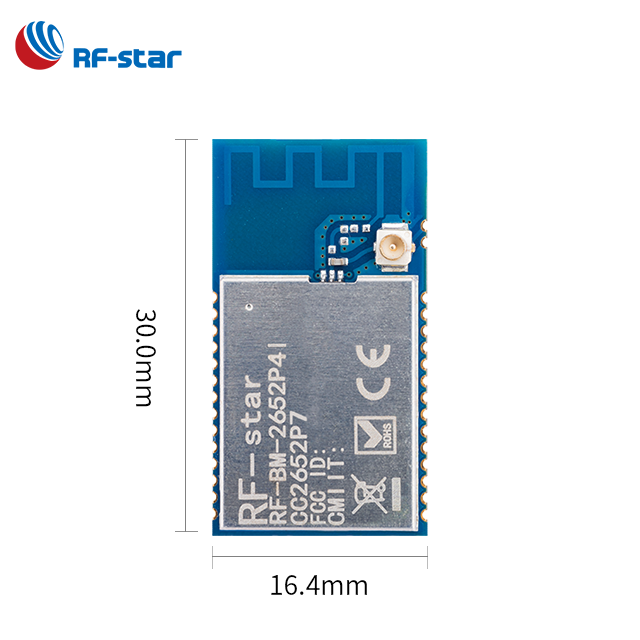

Dimension | 30.0 mm × 16.4 mm × 2.2 mm |
Type of Antenna | RF-BM-2652P4: PCB antenna RF-BM-2652P4I: IPEX connector, ANT pin |
Operating Temperature | -40 ℃ ～ +85 ℃ |
Storage Temperature | -40 ℃ ～ +125 ℃ |
