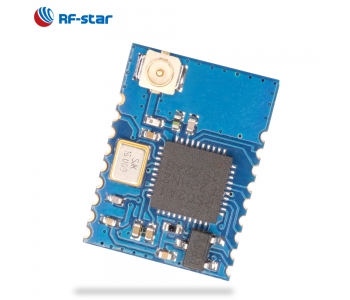

RSBRS02ABRI is a compact size, cost-effective single-mode Bluetooth low energy 5.0 module based on RF-star 256 KB flash SoC RS02A1-B chip with super low power consumption (BLE TX: 13.0 mA @ 0 dBm, BLE RX: 12.0 mA), good noise reduction, better sensitivity, robust transmission distance, and high reliability.
RSBRS02ABRI is a compact size, cost-effective single-mode Bluetooth low energy module based on RF-star 256 KB flash SoC RS02A1-B chip with super low power consumption (BLE TX: 13.0 mA @ 0 dBm, BLE RX: 12.0 mA), good noise reduction, better sensitivity, robust transmission distance, and high reliability. The module integrates a 16 MHz crystal, an RF matching filter, a power filter, and an IPEX connector. It supports BLE stack v5.0 and is preprogrammed with an easy-to-integrate serial interface communication protocol.
Parameters of RSBRS02ABRI
Chipset | RS02A1-B |
Supply Power Voltage | 2.3 V ~ 3.6 V, recommended to 3.3 V |
Modulation | GFSK |
Frequency | 2402 MHz ~ 2480.0 MHz |
Chanel Number | 40 (channel spacing of 2 MHz) |
Transmit Power | -20.0 dBm ~ +5.0 dBm |
Receiving Sensitivity | -94 dBm |
GPIO | 11 |
Crystal | 16 MHz |
ROM | 80 KB |
SRAM | 36 KB, 4 KB Cache |
Flash | 256 KB |
Package | SMT Packaging |
Frequency Error | ±20 kHz |
Dimension | 15.1 mm x 11.2 mm x (2.3 ± 0.1) mm |
Type of Antenna | IPEX Connector |
Operating Temperature | -40 ℃～ +85 ℃ |
Storage Temperature | -40 ℃～ +125 ℃ |
Hibernation Current | 5 μA (Test software RS02A1-B-test.hex) |
Current of Broadcast Event | 90 μA (Broadcast interval: 200 ms @ 0 dBm) |
Current of Connection Event | 0.35 mA (Connection interval: 20 ms @ 0 dBm) |
Pin | Name | Chip Pin | Pin Type | Remarks |
1 | GND | GND | Ground | Ground |
2 | VCC | VCC | VCC | Power supply: 2.3 V ~ 3.6 V, Recommended to 3.3 V |
3 | P02 | P02 | I/O | |
4 | P03 | P03 | I/O | |
5 | RESET | RESET | RESET | Active low |
6 | P04 | P04 | I/O | |
7 | SWC | SWC | SWCLK | Connect J-Link simulator SWCLK |
8 | SWD | SWD | SWDIO | Connect J-Link simulator SWDIO |
9 | NC | NC | NC | |
10 | P05 | P05 | I/O | |
11 | P08 | P08 | I/O | |
12 | P10 | P10 | I/O | |
13 | NC | NC | NC | |
14 | P21 | P21 | I/O | |
15 | P22 | P22 | I/O | |
16 | P24 | P24 | I/O | |
17 | P23 | P23 | I/O | |
18 | P11 | P11 | I/O |
