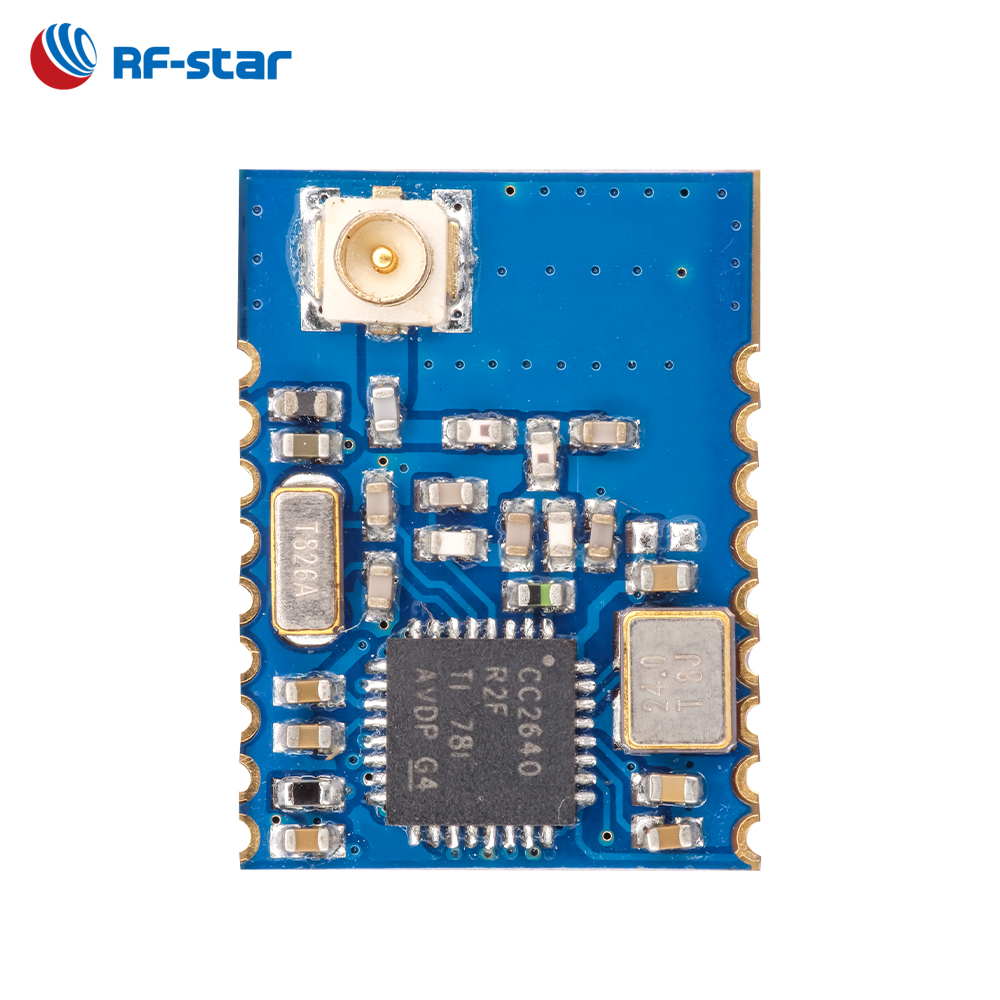

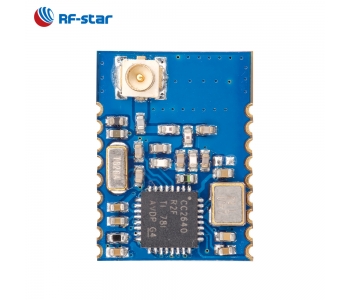

RF-BM-4044B3 module is designed based on CC2640R2FRSM Bluetooth Smart BT 5.0 System-on-Chip, fully supports the single mode Bluetooth Low Energy operation. The module contains a 32-bit ARM CortexTM-M3 processor, with the working frequency at 48.0 MHz which is the same as the main processor.
RF-BM-4044B3 module is designed based on CC2640R2FRSM Bluetooth Smart BT 5.0 System-on-Chip, and fully supports the single-mode Bluetooth Low Energy operation. The CC2640R2F module contains a 32-bit ARM CortexTM-M3 processor, with the working frequency at 48.0 MHz which is the same as the main processor. The module has rich peripherals function libraries, and a unique ultra-low power sensor controller, which is fit for connecting the external sensors in the sleep mode and/or acquiring analog and digital data independently. RF-BM-4044B3 is pin-compatible with the RF-BM-4044B2 in SMT package.
The Parameters of RF-BM-4044B3
Chipset | CC2640R2FRSM |
Supply Power Voltage | 1.8 V ~ 3.8 V, recommended to 3.3 V |
Frequency | 2402 MHz ~ 2480 MHz |
Transmit Power | -21.0 dBm ~ +2.0 dBm (typical: 0 dBm) |
Receiving Sensitivity | -97 dBm |
GPIO | 10 |
Crystal | 24 MHz, 32.768 kHz |
RAM | 20 KB |
Flash | 128 KB |
Package | SMT Packaging |
Interface | UART, I2S, I2C, SPI, ADC |
Frequency Error | ±20 kHz |
Dimension | 15.2 mm x 11.2 mm x (2.10 ± 0.1) mm |
Type of Antenna | IPEX Connector |
Operating Temperature | -40 ℃ ～ +85 ℃ |
Storage Temperature | -40 ℃ ～ +125 ℃ |

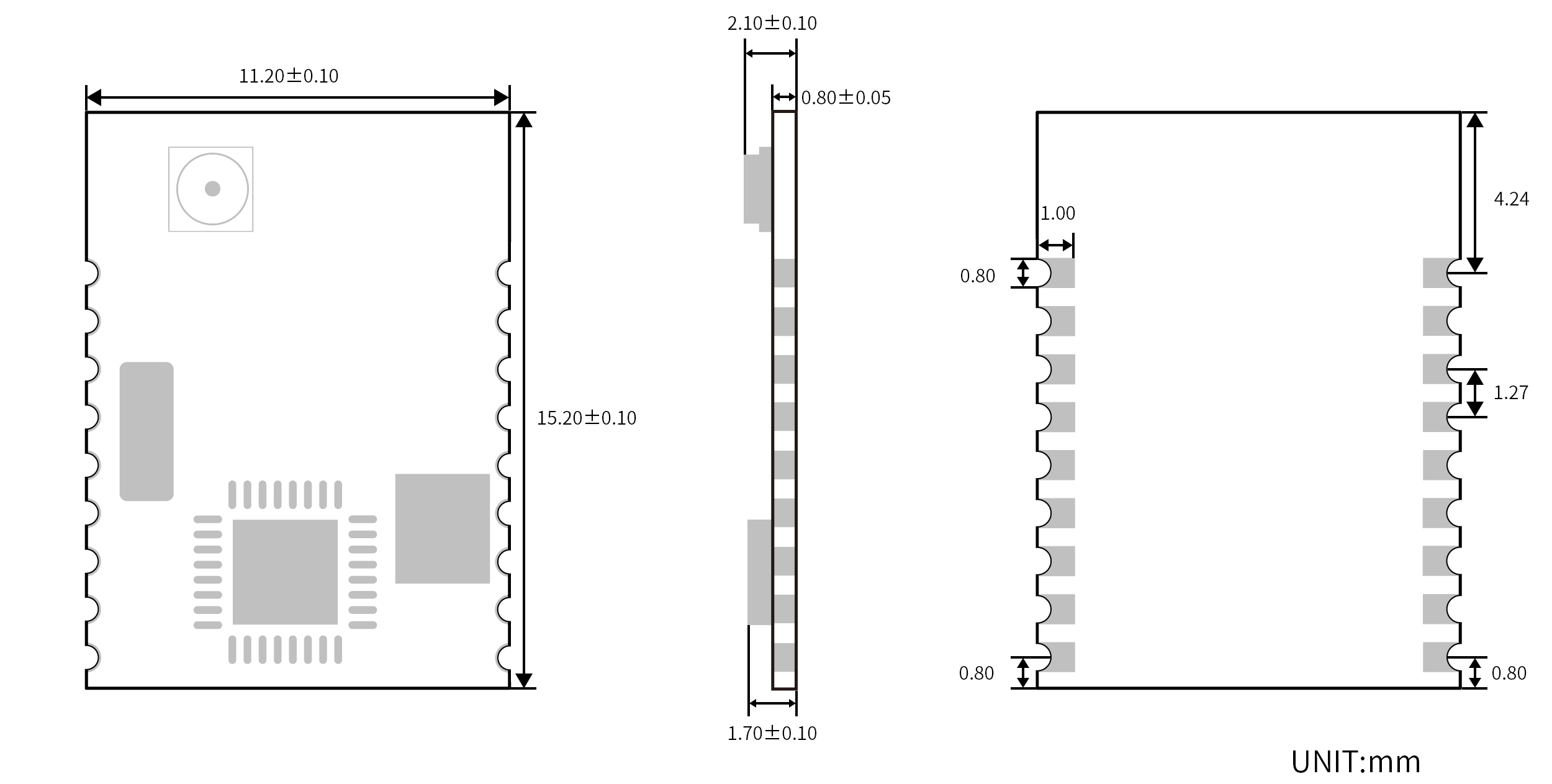

Recommended Footprint
Pin Attributes
The Pin Functions of RF-BM-4044B3
Pin | Name | Chip Pin | Pin Type | Description |
1 | GND | GND | GND | Ground |
2 | VDDZ | VCC | Power | Power supply 1.8 V ~ 3.8 V, Recommend 3.3 V |
3 | TMS | TMSC | JTAG | JTAG: TMSC |
4 | TCK | TCKC | JTAG | JTAG: TCKC |
5 | RES_N | REST | REST | Rese, active low. No need for external RC circuit. |
6 | P06 | P06 | I/O | |
7 | P09 | P09 | I/O | Programmable I/O |
8 | GND | GND | GND | Ground |
9 | GND | GND | GND | Ground |
10 | P08 | P0.8 | I/O | |
11 | P07 | P0.7 | I/O | |
12 | P05 | P0.5 | I/O | |
13 | P04 | P0.4 | I/O | |
14 | P03 / BRTS | P0.3 | I/O | |
15 | P02 / BCTS | P0.2 | I/O | |
16 | P01 / TX | P0.1 | I/O | |
17 | P00 / RX | P0.0 | I/O | |
18 | NC | - | - |
