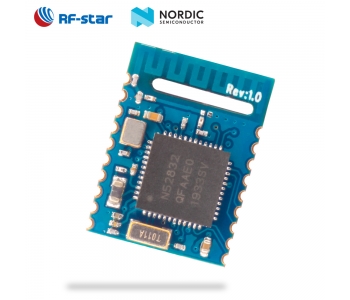

RF-BM-ND08

RF-BM-ND08 is an RF module based on Nordic BLE SoC nRF52832QFAA with ARM? Cortex?-M4 32-bit processor. It integrates a 32.768 kHz and a 32 MHz crystal, an LC filter, an antenna matching and a meander line inverted-F PCB antenna. It features low power consumption, small size, robust connection distance, and rigid reliability.

Chip： nRF52832

Protocols： Bluetooth 5.0 low energy,Bluetooth Mesh,NFC,ANT

Core： ARM? Cortex?-M4 32-bit processor with FPU

Key Features： NFC, ANT, 2.4 GHz proprietary

TX Power： +4.0 dBm

Distance： 100 m

RF-star Hot Product

RFstar long range nrf52832 module small pcb antenna bluetooth nrf52832 for smart toy nrf52832

Nordic Hot Product

RFstar long range nrf52832 module small pcb antenna bluetooth nrf52832 for smart toy nrf52832

Product Description

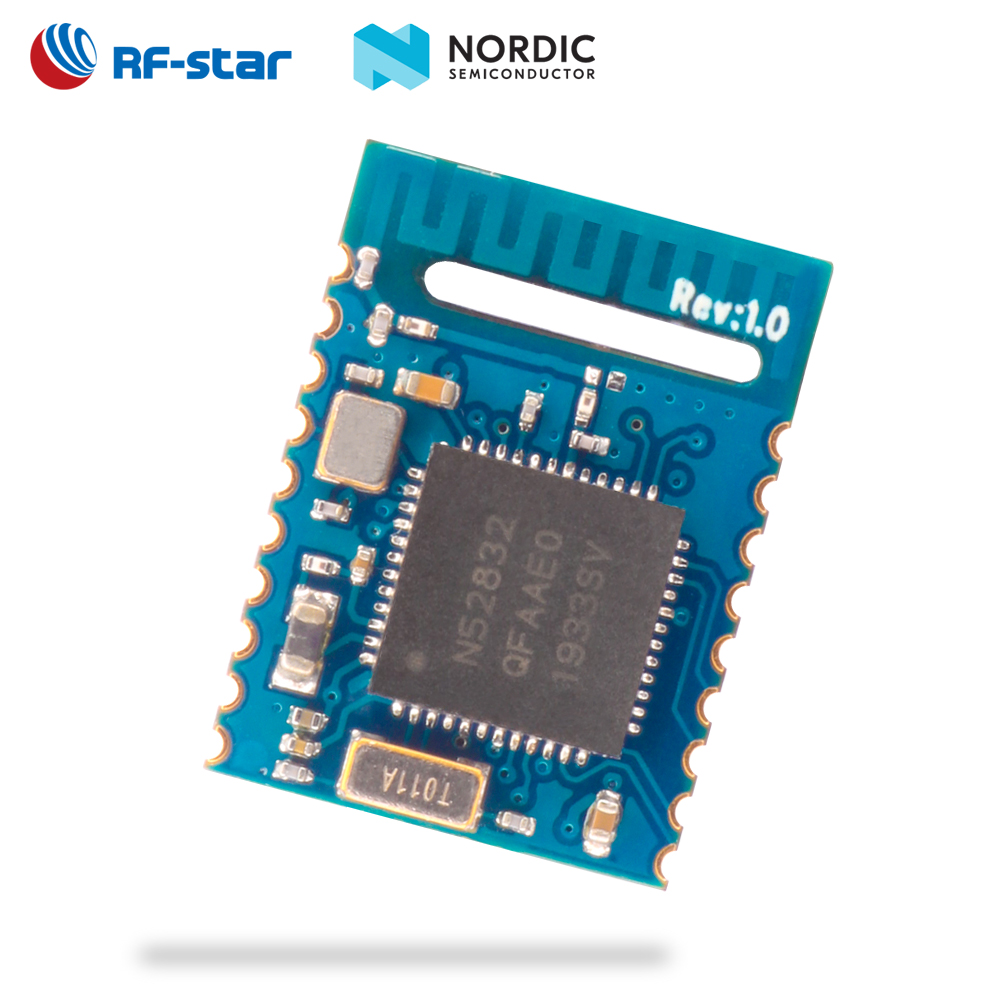

RF-star long-range Nordic nrf52832 small pcb antenna BLE 5.0 module

RF-BM-ND08 is an RF module based on Nordic BLE SoC nRF52832QFAA with ARM^? Cortex^?-M4 32-bit processor. It integrates a 32.768 kHz and a 32 MHz crystal, an LC filter, an antenna matching and a meander line inverted-F PCB antenna. It features low power consumption, small size, robust connection distance, and rigid reliability. It supports BLE stack v5.0 and can be preprogrammed with a serial interface communication protocol for simple programming. 1.27-mm pitch stamp stick package for easy assembling and cost-effective PCB design. RF-BM-ND08 is pin-to-pin compatible with RF-BM-ND08C.

Parameters of RF-BM-ND08

Chipset	nRF52832QFAA
Supply Power Voltage	1.7 V ~ 3.6 V, recommended to 3.3 V
Frequency	2402 MHz ~ 2480 MHz
Transmit Power	-20.0 dBm ~ +4.0 dBm (Typical: 0 dBm)
Receiving Sensitivity	-96 dBm
GPIO	16
Crystal	32 MHz, 32.768 kHz
RAM	64 KB
Flash	512 KB
Package	SMT Packaging
Frequency Error	±20 kHz
Dimension	15.2 mm x 11.2 mm x (1.7 ± 0.1) mm
Type of Antenna	PCB antenna, half-hole interface
Operating Temperature	-40 ℃～ +85 ℃
Storage Temperature	-40 ℃～ +125 ℃

RFstar long range nrf52832 module small pcb antenna bluetooth nrf52832 for smart toy nrf52832

BLE Application

RFstar long range nrf52832 module small pcb antenna bluetooth nrf52832 for smart toy nrf52832

· Internet of Things (IoT)

· Internet Gateway

· Cloud Connectivity

· Industrial Control

· Home Automation

· Smart Plug and Metering

· Home Appliances

· Wireless Audio

· Access Control

· IP Network Sensor Nodes

· Security Systems

· Wearables

· Building automation

· Retail

· Sensor networks

· Medical devices

Pin Functions of RF-BM-ND08

Pin	Name	Chip Pin	Pin Type	Description
1	ANT	-	-	Antenna interface
2	GND	GND	GND	Ground
3	VCC	VCC	VCC	Power supply 1.7 V ~ 3.6 V, Recommend 3.3 V
4	P25	P0_25	I/O
5	P17	P0_17	I/O
6	P21/RST	P0_21 / RESET	I/O	Reset, active low.
7	P13	P0_13	I/O
8	P28	P0_28 / AIN4	I/O
9	P27	P0_27	I/O
10	P26	P0_26	I/O
11	P09	P0_09	I/O
12	P10	P0_10	I/O
13	P19	P0_19	I/O
14	P20	P0_20	I/O
15	P05	P0_05 / AIN3	I/O
16	P07	P0_07	I/O
17	P06	P0_06	I/O
18	P08	P0_08	I/O
19	P03	P0_03 / AIN1	I/O
